Multipurpose automotive and aeronautical Eddy Current bench (stationary bench)

This Eddy Current bench (stationary bench) was initially designed to characterise propeller engines. The bench has a high capacity air inlet and outlet allowing propeller operation and noise reduction. Aircraft engines can be tested in propeller configuration or with a load (brake) machine. In 2019, this test bed was renovated by in-house teams to accommodate automotive testing.

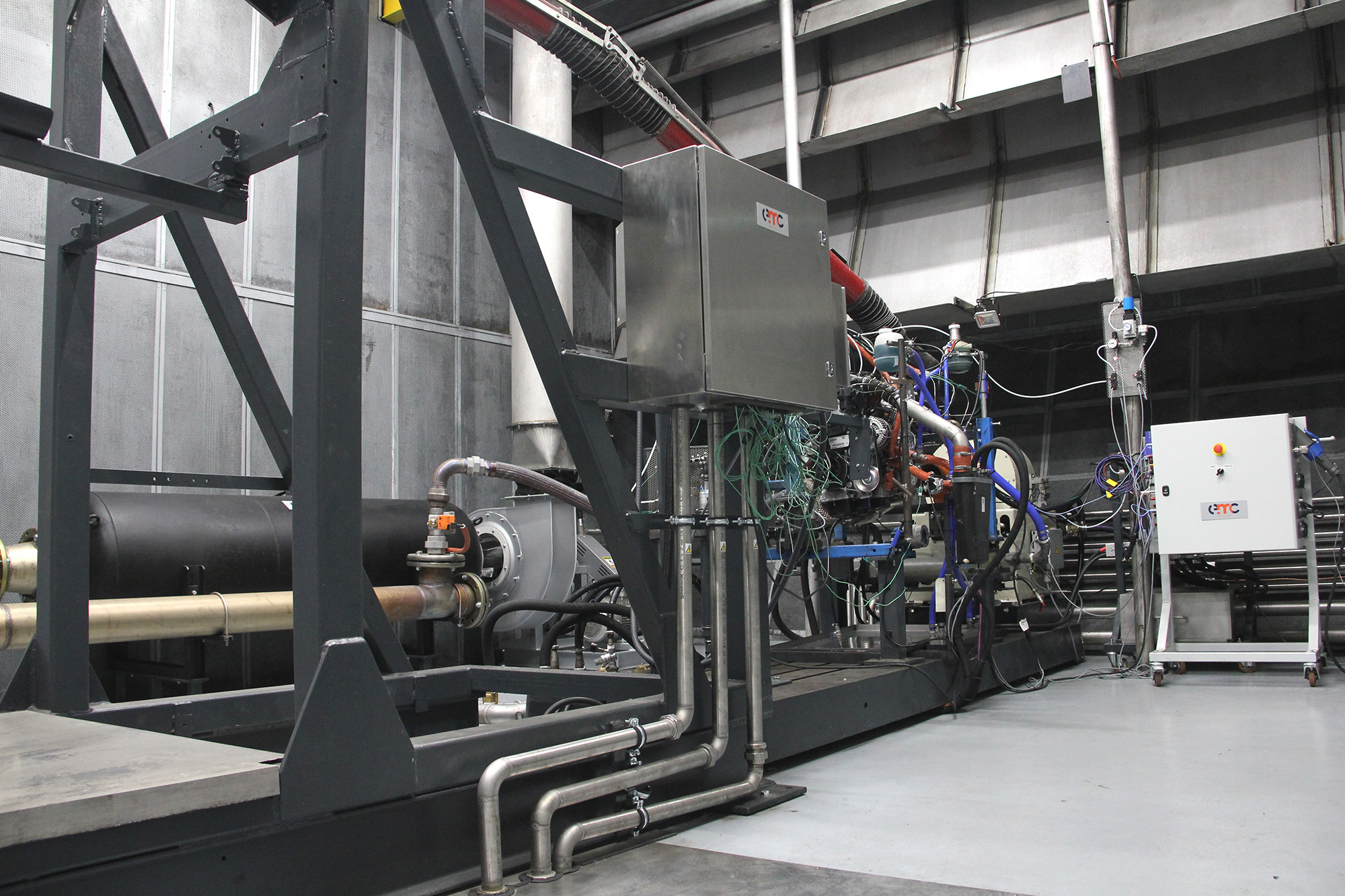

Banc Polyvalent B12 - Stationnaire - mode automobile

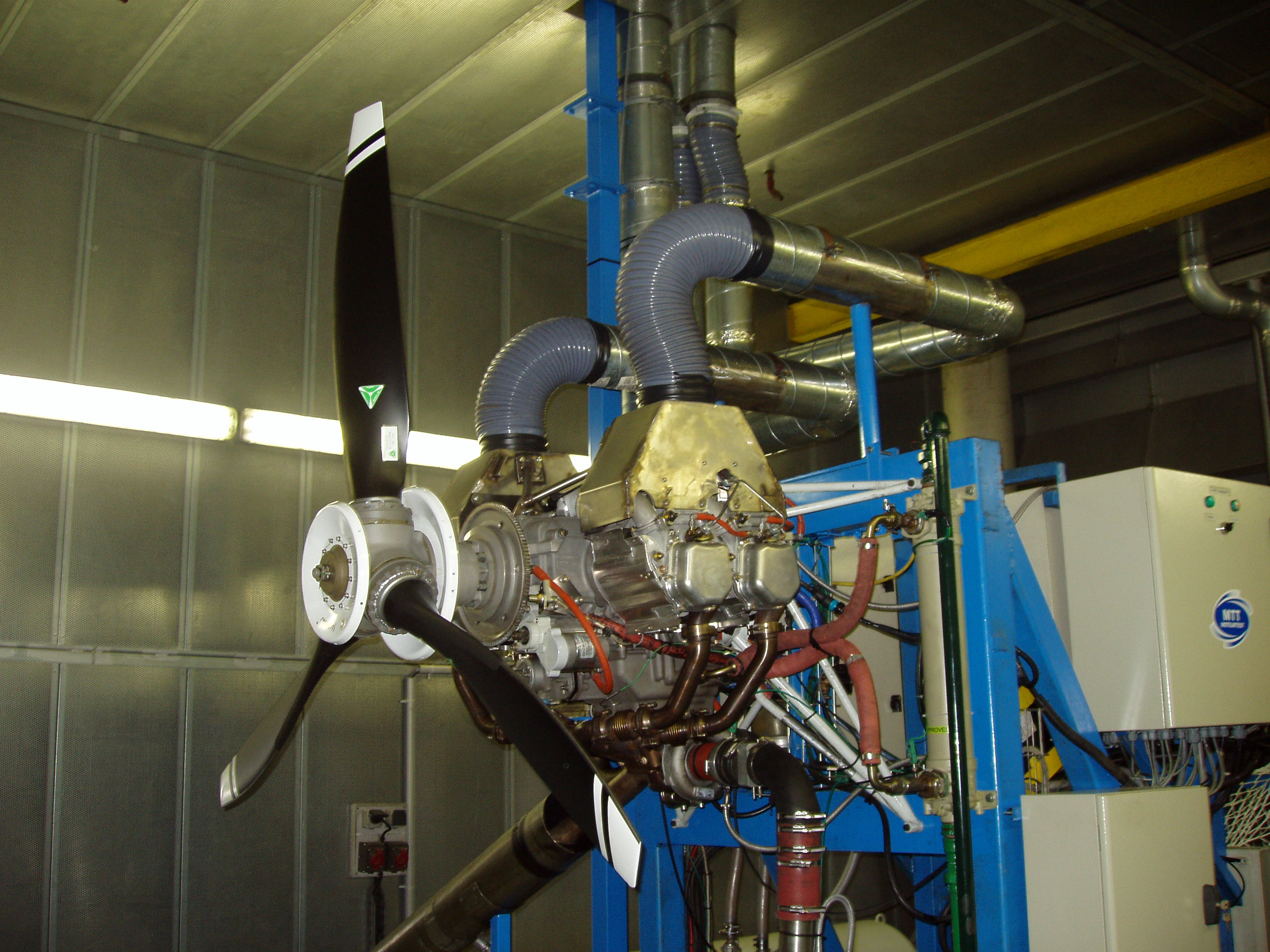

Banc Polyvalent B12 - Stationnaire - mode aéronautique



Characteristics of the stationary bench (Eddy Current)

  • Area of the cell 45 m2
  • Generator/motor
    • Power: 380 KW
    • Max torque: 600Nm up to 2300 rpm
    • Max speed: 9000 rpm
  • Fast acquisition configurable from 5 to 100 Hz
  • Control in speed - torque mode
  • ETAS equipment with engine control link, lambda meter
  • Combustion analysis system: Osiris, Indicom
  • Consumption measurement by Coriolis flow meter
  • Fuel conditioner
  • Combustion air + hygrometry regulation
  • Vehicle line or bench mounting
